LINE antiglare

A stylish solution for comfortable lighting of the entrance group. The optical system with an additional anti-glare reflector reduces the level of visual discomfort and ensures a glare rating of UGR<19.

The variety of custom brackets allows for easy recessed or suspended installation of the fixture into the rack ceilings.

Features of the series

inner optical reflector provides UGR<19

comfortable diffused light and high CRI>85

all INTILED technologies integrated

Download

LINE antiglare presentation
LINE antiglare datasheet
LINE antiglare dimansional drawing
LINE antiglare mounting accessories
LINE antiglare ies-files
download all materials

Application

Technical characteristics

optical

light color:
white (2700 K, 3000 К, 4000 К, 5000 К)
optics:
50°
delivered lumen output:
up to 3850 lm (for 900 mm)
color binning:
2 MacAdam ellipses
CRI:
≥85
UGR:

<19

BUG:
Dark Sky:

compatible

electrical

power factor Cos φ:

>0.9

wattage:

up to 35 W (for 900 mm)

voltage:
230 V AC
electrical class:
I

standard RAL colors

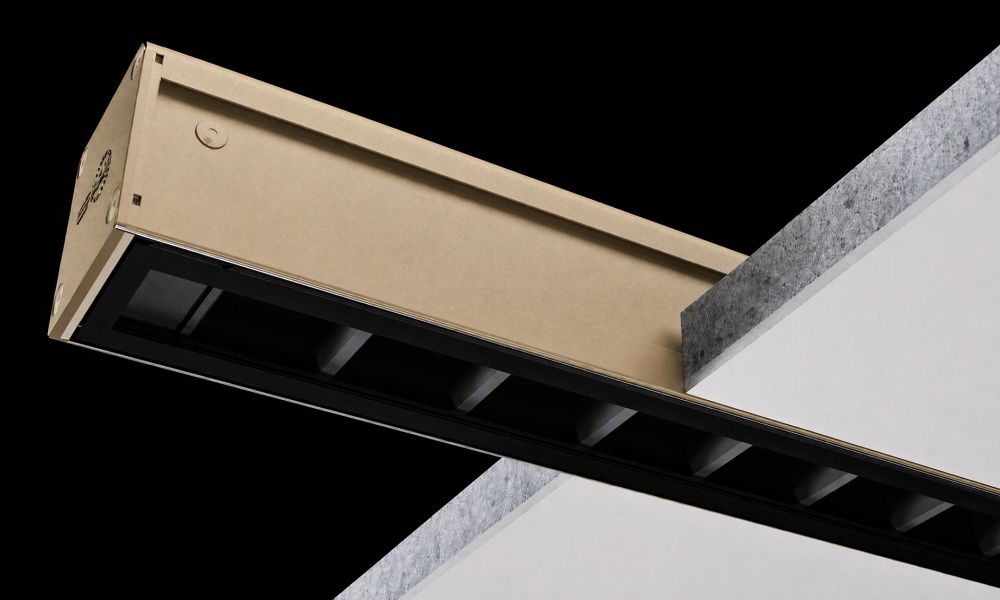

RAL1001

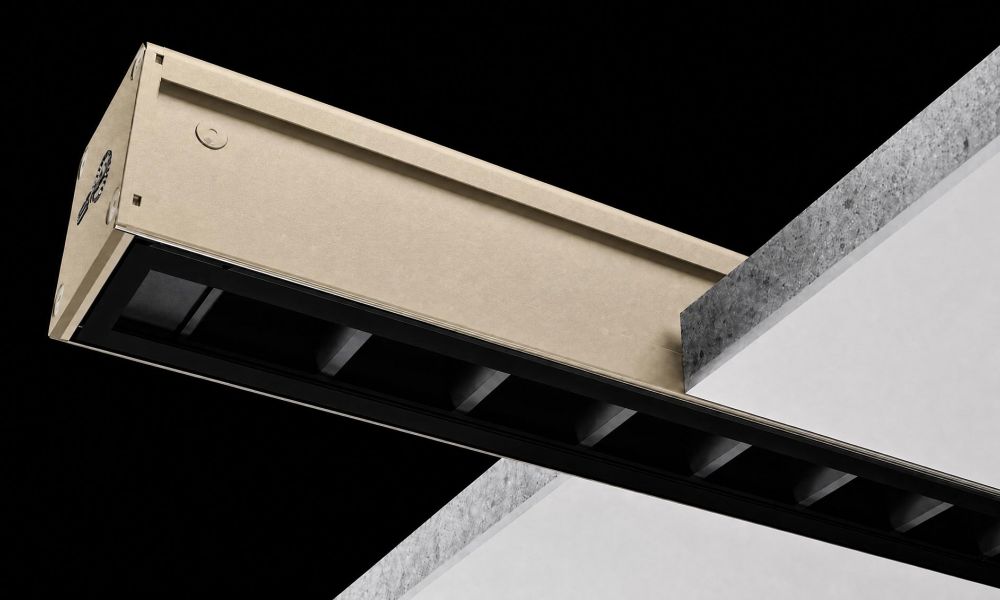

RAL1015

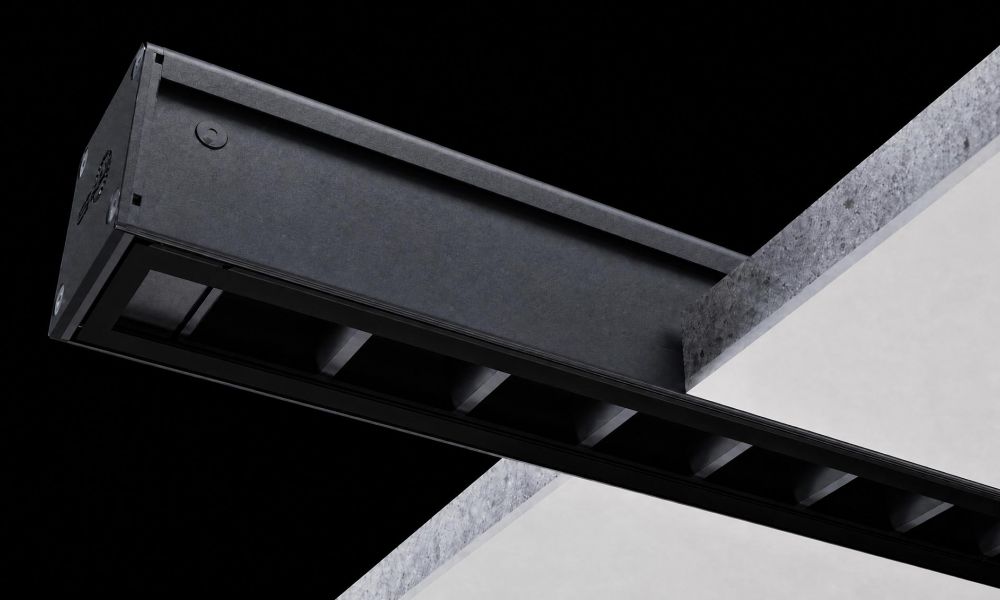

RAL7016

RAL8004

RAL8017

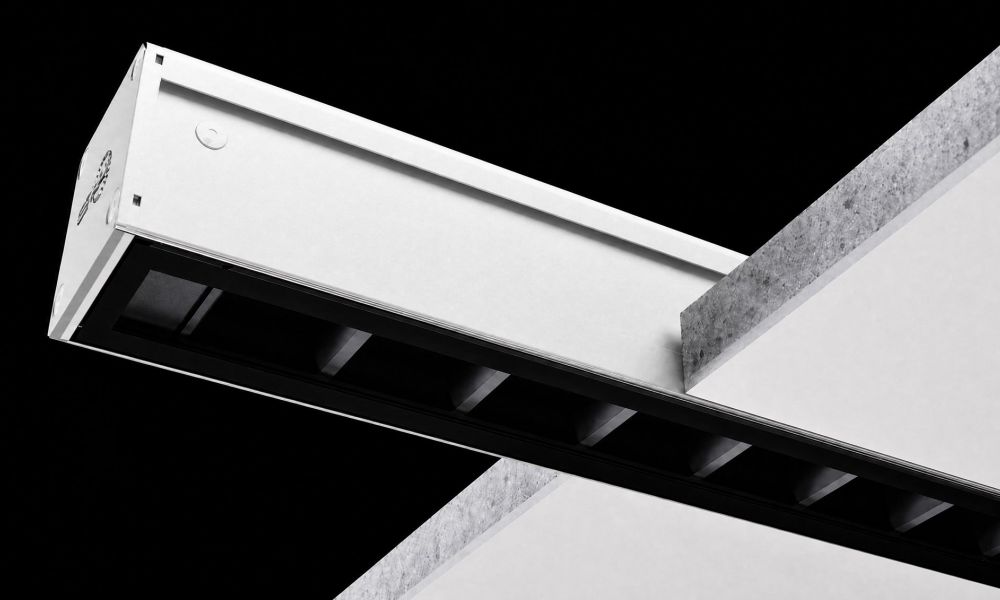

RAL9003

RAL9005

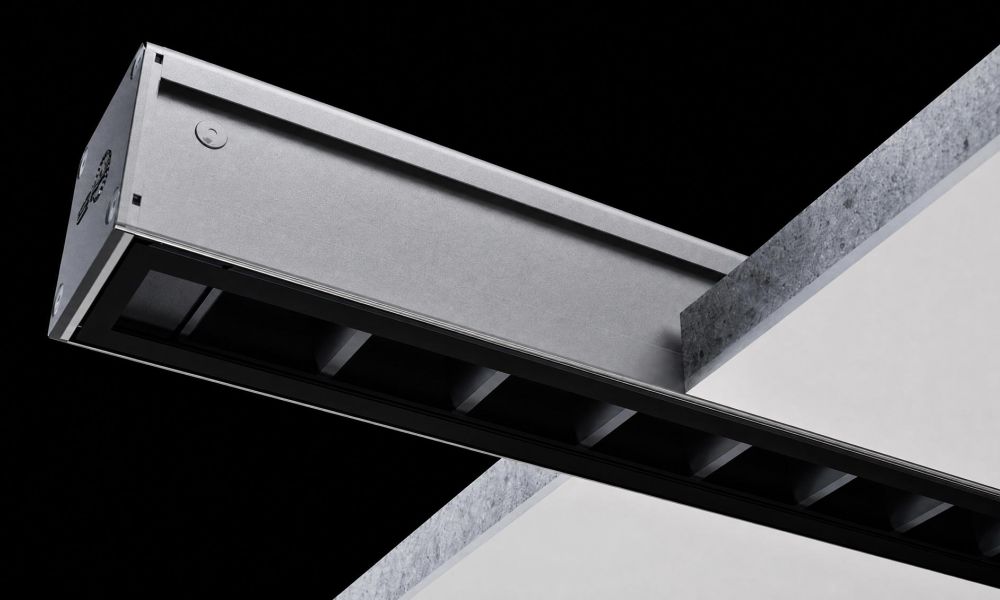

RAL9006

standard coating type

М - moire

control

control:
on/off

operational

ingress protection:

IP66

mechanical protection:
IK08
operating temperature:
-40°С ... +55°С
lifespan:
not less than 50 000 hours

additionally

materials:
housing: aluminum alloy covered with powder paint;
protective glass: silicate tempered glass;
bracket: aluminum alloy/stainless steel covered with powder paint;
mounts: aluminum alloy and stainless steel.
lengths:

300 mm, 600 mm, 900 mm

dimensions:

58х56 mm

weight:

up to 2,5 kg (for 900 mm)

customization:
correction of length, light color, optics, control (DALI), powwr and lumen output for the requirements of the project
certification:

CE, EAC

Specific features

inner anti-glare diffuser

removes glare and provedes most diffused and comfortable light

special optical system

areates even diffused light

top LEDs

with narrow binning inside 2 MacAdam steps and CRI>85.

In case of additional questions - please ask below:

Need accept the Terms and Conditions. *
Due to the constant renewal of our model range and improving technical characteristics the technical intormation can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your INTILED manager.
